- Details
-

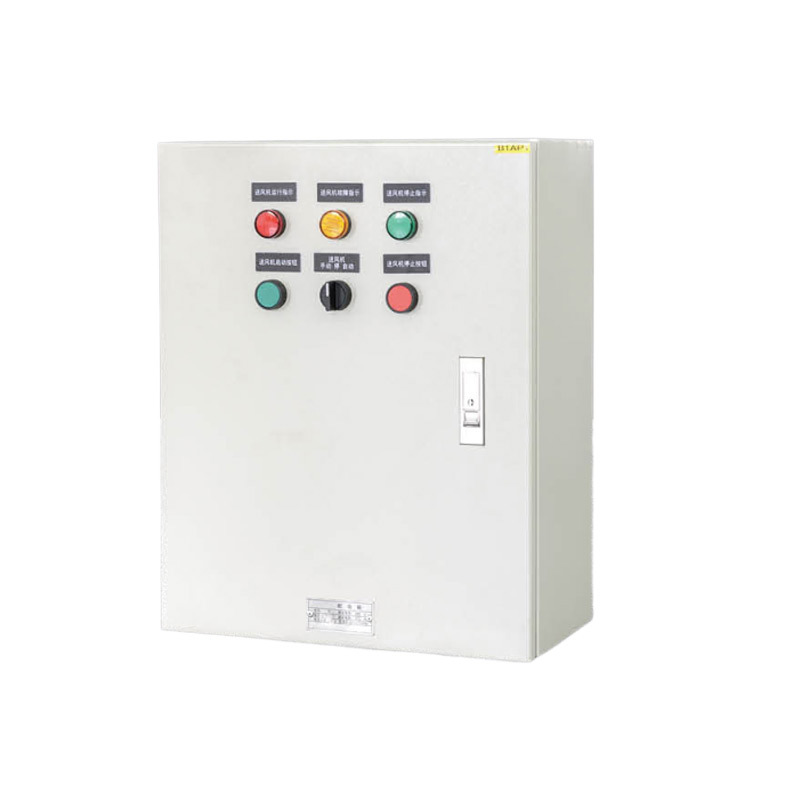

- Commodity name: JXF distribution box
Applicable to circuits with AC frequency of 50Hz and rated working voltage below 500V. There are knock-out holes on the top and bottom of the box, and a pre-installed perforated plate can be reserved for multi-tube inlet lines. The maximum rated current can reach 400A, which is particularly suitable for power supply control in factories, mines, hotels, and residential buildings.
Overview
Applicable to circuits with AC frequency of 50Hz and rated working voltage below 500V. There are knock-out holes on the top and bottom of the box, and a pre-installed perforated plate can be reserved for multi-tube inlet lines. The maximum rated current can reach 400A, which is particularly suitable for power supply control in factories, mines, hotels, and residential buildings.
Model meaning
JXF 口 口 口 / 口 口 Distribution Box Hinge code:
1 means concealed hinge
2 means visible hingeBox height
(mm)Box width
(mm)Box Depth
(mm)
Installation method
M open installation
R concealed installation
W outdoorConditions of use
• The ambient air temperature is not higher than 40°C and not lower than -5°C. The average temperature within 24 hours shall not be higher than +35°C;
• For indoor use, the altitude of the use location is ≤2000m;
• The relative humidity of the ambient air is not more than 50% at the highest temperature of +40°C; a higher relative humidity is allowed at lower temperatures, 90% at +20°C, and the influence of condensation that may occur accidentally due to temperature changes should be considered; .
• If the user has special requirements, they can be negotiated with the manufacturer.Main features
• Multiple series, multiple structures, welded, split, assembled; outdoor type, indoor type;
• A variety of double-layer door structures, safe and reliable to use;
• A variety of protection levels: IP20, IP40. IP43, IP54, IP65; can meet the needs of different places.Main technical parameters
Model High Width Deep JXF-4030/14 400 300 140 JXF-4030/20 400 300 200 JXF-5040/14 500 400 140 JXF-5040/20 500 400 200 JXF-5040/23 500 400 230 JXF-6040/14 600 400 140 JXF-6040/20 600 400 220 JXF-6040/23 600 400 230 JXF-6050/14 600 500 140 JXF-6050/20 600 500 200 JXF-6050/23 600 500 230 JXF-7050/16 700 500 160 JXF-7050/20 700 500 200 JXF-7050/25 700 500 250 Dimensions
