Dry type transformer 35KV SC(B)13
Dry Type Transformer
- Details
-

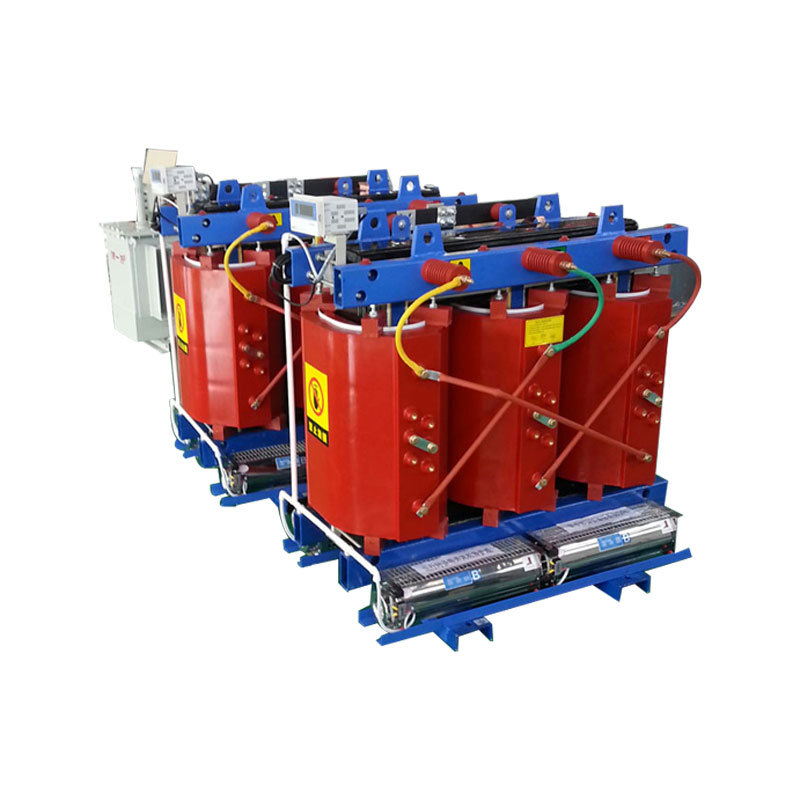

- Commodity name: Dry type transformer 35KV SC(B)13
This series of products is used to directly reduce 20kV and 35k grid power supply to 4OOV distribution power supply or 10k√ transmission power supply to provide power to users. Due to its significant advantages, it is used in more and more projects.
Product introduction
This series of products is used to directly reduce 20kV and 35k grid power supply to 4OOV distribution power supply or 10k√ transmission power supply to provide power to users. Due to its significant advantages, it is used in more and more projects. Its main advantages are: reducing land occupation and multi-level substation construction, which has significant social benefits; saving project investment and improving economic benefits; reducing 10kV power transmission and transformation links, significantly reducing operation and maintenance costs; using high voltage and small current instead Low-voltage and high-current power transmission reduces line losses and line operating costs; 35kV and 2OkV power supplies directly enter the power center, effectively improving the reliability of power supply.
Model meaning
S C （B） 11 - 口 / 口 Three-phase Epoxy resin casting type Low voltage can use
Foil coil
Performance level code Rated capacity
(kVA)Voltage level
(kV)Product features:
The SC(B)3 series 2OKV and 35kV non-excitation voltage-regulating dry-type transformers produced by our company are low-loss products that meet the requirements of national standards GB6450, GB/T10228 and IEC726, and have the following characteristics:◆ High performance and low loss, it is a replacement product for the 9-type series.
◆ High-quality silicon steel sheets are selected, and the magnetic flux density is greatly reduced, the magnetostriction of silicon steel sheets during operation is reduced, and the noise is effectively reduced.
◆ The high-voltage coil structure is optimized, the distribution of interlayer voltage and capacitance is improved, and the product's ability to withstand atmospheric overvoltage and operating overvoltage impact is greatly improved. At the same time, the electric field distribution is also improved, and the partial discharge of the product is further reduced.
◆ It can be configured with a temperature control system and an air cooling device, and the fan cooling device is automatically started when the load is too large, effectively improving the overload capacity of the equipment.
Technical parameters:
35kV SC(B)13 series non-excitation voltage-regulating dry-type power transformer
Rated capacity（kVA） Link group label Voltage Organization（KV）） No-load current（%） Load loss at different insulation heat resistance levels（W） No-load loss（W） Short circuit current（%） High pressure（KV） High voltage tapping range(%) Low pressure（KV） B(100℃) F(120℃) H(145℃) 800 Dyn11
yd11
Dyn0
35
~
38.5±5%
±2×2.5
3.15
6
6.3
10
10.5
11
0.9 8930 9400 10070 4860 6.0 1000 0.9 10260 10920 11680 2250 1250 0.8 12160 12920 13770 2673 1600 0.8 14630 15480 16530 3130 2000 0.7 17190 18240 19570 3690 7.0 2500 0.7 20610 21850 23370 4230 3150 0.6 23080 24510 26120 6030 8.0 4000 0.6 27930 29450 31350 7020 5000 0.5 32960 34960 37330 8370 6300 0.5 38470 40850 43600 9900 8000 Dyn11
yd11
YNd11
6
6.3
10
105
11
0.4 43410 46070 49300 11340 9.0 10000 0.4 52720 55570 59470 12960 12500 0.3 60800 64600 69060 15750 16000 0.3 71720 76000 80560 19350 20000 0.3 80750 85500 91480 22950 10. Note: The negative halberd losses listed in the table are the values under the reference temperature in brackets (see GB 1094.11).
35kV SC(B)13 series off-excitation voltage regulating distribution transformer
Rated capacity（kVA） Link group label Voltage Organization（KV）） No-load current（%） Load loss at different insulation heat resistance levels（W） No-load loss（W） Short circuit current（%） high pressure（KV） High voltage tapping range(%) Low pressure（KV） B(100℃) F(120℃) H(145℃) 50 Yyn0
Dyn11
35
~
38.5±5%
±2×2.5
0.4 2.6 1350 1420 1520 450 6.0 100 2.2 1970 2080 2230 630 160 1.6 2650 2810 3010 790 200 1.6 3130 3320 3560 880 250 1.4 3560 3800 4060 990 315 1.4 4250 4510 4820 1170 400 1.2 5090 5410 5770 1370 500 1.2 6420 6650 7070 1620 630 1.0 7260 7690 8260 1860 800 1.0 8550 9120 9730 2160 1000 0.8 9880 10450 11210 2430 1250 0.7 12060 12730 13580 2830 1600 0.7 14630 15480 16530 3240 2000 0.7 17190 18240 19470 3820 2500 0.7 20610 21850 23370 4450 Note: The load losses listed in the table are the values under the reference temperature in brackets (see GB 1094.11).
