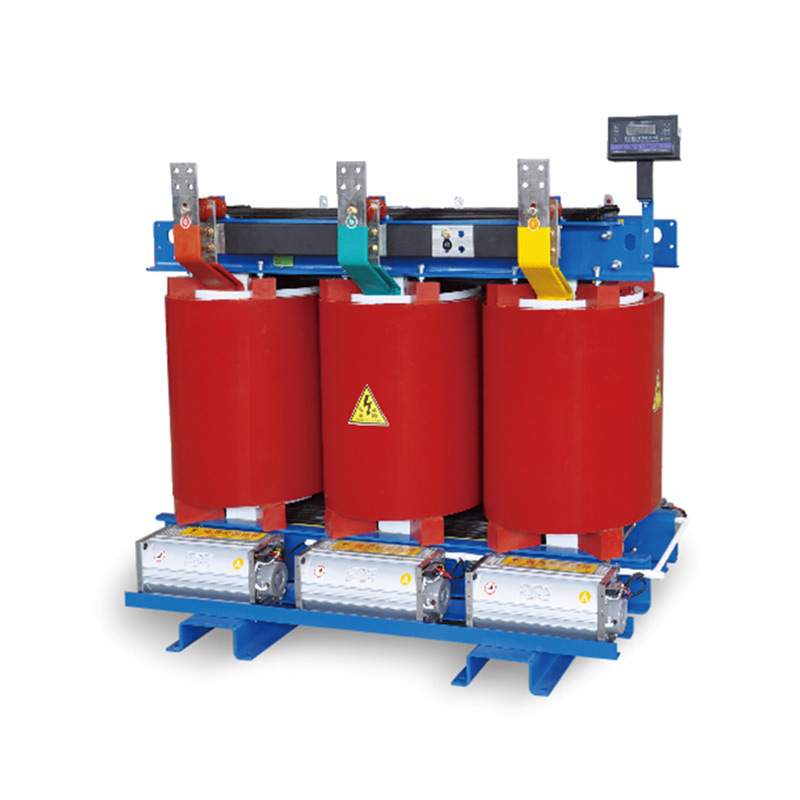

- Commodity name: Dry type transformer 10KV SC(B)15/16
The SCBH15. SCBH16 amorphous alloy dry-type transformers developed and designed by our company using mature technology have superior performance, and the products are safe, reliable, and environmentally friendly. They can penetrate into the load center and meet the needs of the development of modern large cities with high-density loads.
Product Introduction
The SCBH15. SCBH16 amorphous alloy dry-type transformers developed and designed by our company using mature technology have superior performance, and the products are safe, reliable, and environmentally friendly. They can penetrate into the load center and meet the needs of the development of modern large cities with high-density loads. This product greatly reduces no-load loss and load loss, and is the dry-type transformer in the world today.
This product has the advantages of flame retardancy, self-extinguishing, moisture resistance, moisture resistance, crack resistance and maintenance-free. It can be widely used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises and power plants. It is especially suitable for installation and use in places with high fire protection requirements such as flammable and explosive places.Model Meaning
S C （B） H 15 - 口 / 口 Three-phase Epoxy resin casting type Low voltage can use
Foil coil
Amorphous alloy Performance level code Rated capacity
(kVA)Voltage level
(kV)Features
This iron core is rolled from amorphous alloy strip, adopts rectangular cross-section, three-phase five-column structure or three-phase three-column structure. The no-load loss is reduced by three-quarters than that of ordinary dry-type transformers, and the energy saving effect is significant.
The low-voltage coil is wound with copper foil, and the high-voltage coil is made of epoxy resin through vacuum casting or Nomex insulation material. It adopts a continuous structure and is impregnated with H-class solvent-free insulation multiple times by VPI vacuum pressurization equipment and baked and cured at high temperature. It has high mechanical strength, good heat dissipation effect and strong ability to withstand short circuit.
◆ Flame retardant, explosion-proof, non-polluting, high fire protection level.
◆ Small partial discharge, high insulation level and long product service life.
◆ This product can be decomposed and recycled after its service life and will never pollute the environment.
◆ Low noise, small size, simple installation and maintenance-free.
◆ Excellent "three-proof" ability, no cracks.
◆ It has strong overload capacity and can operate safely for a long time under 120% load.Technical parameters
SCBH15 amorphous alloy dry type transformer
Rated capacity（kVA） Link group label Voltage combination(KV) No-load current（%） No-load loss（W） Load loss（145℃）W Impedance Current（%） B(%℃) F(120℃) F(145℃) 30 YynoorDyn11 6~10±2×2.5%/0.4 1.6 70 670 710 760 4.0 50 1.4 90 940 1000 1070 4.0 80 1.3 120 1290 1380 1480 4.0 100 1.2 130 1480 1570 1690 4.0 125 1.1 150 1740 1850 1980 4.0 160 1.1 170 2000 2130 2280 4.0 200 1.0 200 2370 2530 2710 4.0 250 1.0 230 2350 2760 2960 4.0 315 0.9 280 3270 3470 3730 4.0 400 0.8 310 3750 3990 7280 4.0 500 0.8 360 4590 4880 5230 4.0 630 0.7 420 5530 5880 6290 4.0 630 0.7 410 5610 5960 6400 6.0 800 0.7 480 6550 6960 7460 6.0 1000 0.6 550 7650 8130 8760 6.0 1250 0.6 650 9100 9690 10370 6.0 1600 0.6 760 11050 11730 12580 6.0 2000 0.5 1000 13600 14450 15560 6.0 2500 0.5 1200 16150 17170 18450 6.0 1600 0.6 760 12280 12960 13900 8.0 2000 0.5 1000 15020 15960 17110 8.0 2500 0.5 1200 17760 18890 20290 8.0 SCBH16 amorphous alloy dry-type transformer
Rated capacity（kVA） High pressure（KV） High voltage tapping range(%) Low pressure（KV） No-load current（%） No-load loss（W） Load loss（145℃）W Impedance Current（%） B(%℃) F(120℃) F(145℃) 30 6
6.3
6.6
10
10.5
11±5
±2.5×2.5
0.4 1.6 70 635 675 720 4.0 50 1.4 90 895 950 1015 4.0 80 1.3 120 1225 1310 1405 4.0 100 1.2 130 1405 1490 1605 4.0 125 1.1 150 1655 1760 1880 4.0 160 1.1 170 1900 2025 2165 4.0 200 1.0 200 2250 2405 2575 4.0 250 1.0 230 2460 2620 2810 4.0 315 0.9 280 3105 3295 3545 4.0 400 0.8 310 3560 3790 4065 4.0 500 0.8 360 4360 4635 4970 4.0 630 0.7 420 5255 5585 5975 4.0 630 0.7 410 5330 5660 6080 6.0 800 0.7 480 6220 6615 7085 6.0 1000 0.6 550 7265 7725 8320 6.0 1250 0.6 650 8645 9205 9850 6.0 1600 0.6 760 10495 11145 11950 6.0 2000 0.5 1000 12920 13725 14780 6.0 2500 0.5 1200 15340 16310 17525 6.0 1600 0.6 760 11660 12310 13200 8.0 2000 0.5 1000 14270 15160 16250 8.0 2500 0.5 1200 16870 17940 19270 8.0
