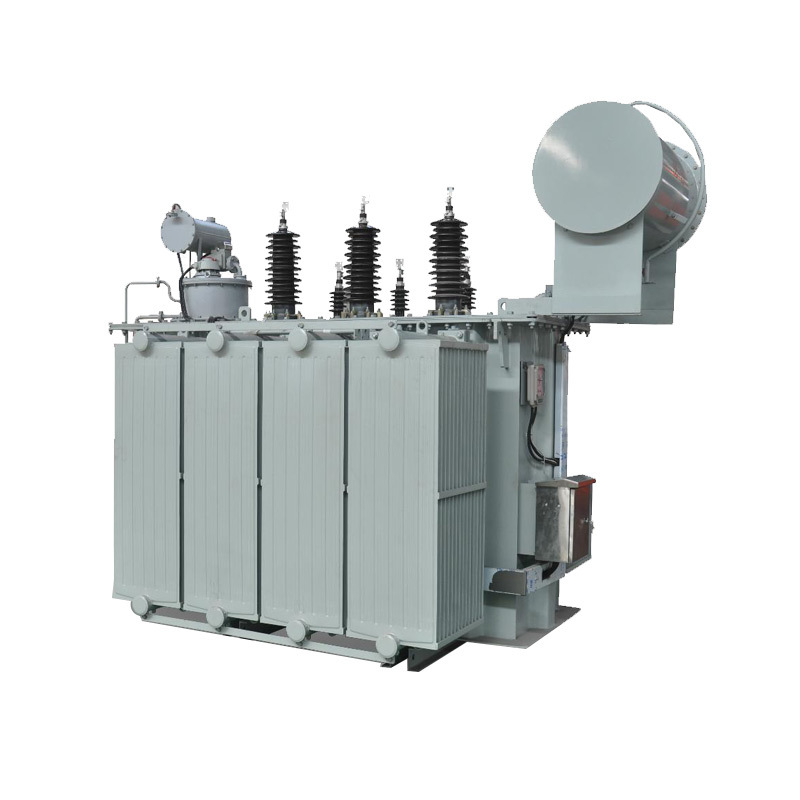

35KV S13 Oil immersed distribution transformer
Oil immersed transformer
- Details
-
- Commodity name: 35KV S13 Oil immersed distribution transformer
This series of products is relatively advanced in design, and has been greatly improved and enhanced in materials, structure and process. The high and low voltage clamps are tightened by steel straps or upper beams and side beams to form a solid frame structure, enhance the core clamping force and withstand transportation impact.
Product Introduction
This series of products is relatively advanced in design, and has been greatly improved and enhanced in materials, structure and process. The high and low voltage clamps are tightened by steel straps or upper beams and side beams to form a solid frame structure, enhance the core clamping force and withstand transportation impact. It has strong short-circuit resistance, beautiful appearance, reliable operation, low loss, low noise, and reaches the advanced level of similar foreign products.
Model Meaning
S 口 口 11 - 口 / 口 Three-phase "F" stands for air cooling
No code for self-cooling
No code for off-excitation voltage regulation
"Z" for on-load voltage regulationPerformance level code capacity
(kVA)Rated capacity
(kVA)Voltage level Implementation standards
GB 1094.1-2 "General Principles for Power Transformers" "Temperature and Temperature of Oil-Immersed Transformers"
GB 1094.3 "Insulation Level, Insulation Test and External Insulation Air Gap"
GB 1094.5 "Short Circuit Withstand Capacity of Power Transformers"
GB/T 6451 "Technical Parameters and Requirements for Oil-Immersed Power Transformers"
GB/T 15164 "Load Guidelines for Oil-Immersed Power Transformers"
GB2536 "Transformer Oil"Technical Parameters
S13 35kV Oil-Immersed Power TransformerRated capacity（kVA） Voltage organization and tapping range（KV）） Link group label No-load loss（W） Load loss（75℃）W No-load current（%） Short circuit current（%） High pressure（KV） High voltage tapping range(%) Low pressure（KV） 50 35
38.5±5%
±2×2.5%
0.4 Dyn11
Yyn0
130 1200/1140 1.3 6.5 100 185 2010/1910 1.10 125 215 2370/2260 1.10 160 225 2820/2680 1.0 200 270 3320/3160 1.0 250 320 3950/3760 0.95 315 385 4750/4530 0.95 400 465 5740/5470 0.85 500 545 6910/6580 0.85 630 665 7860 0.65 800 785 9400 0.65 1000 920 11500 0.65 1250 1120 13900 0.60 1600 1350 16600 0.60 Note: 1. The high voltage tapping range of the transformer can be ±2×2.5% as required; 2. The performance parameters of products with other capacities are determined by negotiation between the user and the manufacturer.
