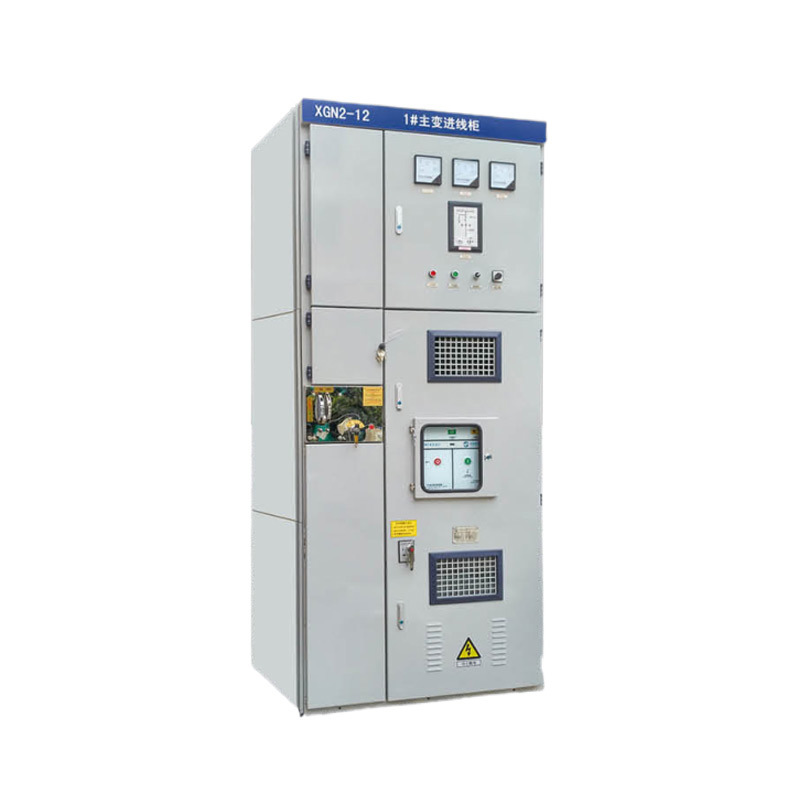

XGN-12 Miniaturized box-type fixed metal enclosed switchgear
High voltage switchgear series
- Details
-
- Commodity name: XGN-12 Miniaturized box-type fixed metal enclosed switchgear
XGN-12 miniaturized box-type fixed metal-enclosed switchgear is a new generation of miniaturized patented product independently developed and produced by our company, which is intelligent, environmentally friendly and compact. Product size: width 450 (500) x depth 1000 x height 1800 (mm).
Overview
XGN-12 miniaturized box-type fixed metal-enclosed switchgear is a new generation of miniaturized patented product independently developed and produced by our company, which is intelligent, environmentally friendly and compact. Product size: width 450 (500) x depth 1000 x height 1800 (mm).
This product is suitable for ring network power supply units, power plants, and substations. It is especially suitable for the control and protection of power distribution in industrial and mining enterprises, residential areas, schools, high-rise buildings and other places: it can meet the power distribution automation and other requirements of complete sets of products such as substations, substations, switchgears and cable distribution boxes.Model meaning
X G N 2 - 12 Z Box Type Fixed Indoor Design No. Rated voltage (KV) Vacuum circuit breaker
Conditions of use
• Ambient air temperature: -15°C -+40°C;
• Altitude: 1000m and below:
• Humidity: daily average value not more than 95%, daily average value of water vapor pressure not more than 2.2KPA; monthly average value not more than 90%, monthly average value of water vapor pressure not more than 1.8KPA;
• Earthquake intensity: not more than 8 levels;
• Places without obvious pollution such as corrosive or flammable gases.
Note: Special requirements can be negotiated with our companyMain technical parameters
Project Unit Parameter Rated voltage kV 3.6、7.2、12 Rated current kV 630-3150 Rated short-circuit breaking current kV 20、25、31.5、40 Rated short-circuit closing current (peak value) Hz 50、63、80、100 Rated withstand current (peak value) A 50、63、80、100 Rated short-time withstand current kA 20、25、31.5、40 Rated insulation level 1min power frequency withstand voltage Between poles, between poles and ground kV 24、32、42 kV 24、32、48 Between fractures kV 40、60、75 Lightning impulse withstand voltage Between poles, between poles and ground kV 40、60、85 Between fractures kA 50、63、80 Protection level IP2X Main wiring type Single busbar segmentation and single busbar with bypass Operating mechanism mode Electromagnetic, spring energy storage Dimensions (width x depth x height) mm 1100*1200*2650( General Weight kg ≈700
Structural features
• The XGN2-12(Z) switch cabinet is a metal-enclosed box-type structure. The cabinet frame is welded by angle steel. The cabinet is divided into circuit breaker room, busbar room, cable room, instrument room, etc., and the rooms are separated by steel plates.
• The circuit breaker room is in the front lower part of the cabinet. The rotation of the circuit breaker is connected by a pull rod and an operating mechanism. The upper terminal of the circuit breaker is connected to the upper disconnector, and the lower terminal of the circuit breaker is connected to the current transformer. The current transformer is connected to the terminal of the lower disconnector. The circuit breaker room is also equipped with a pressure release channel. If an internal arc occurs, the gas can release the pressure through the exhaust channel. Control equipment, and DLT402, DUT404 standards, meet the "five-protection" locking requirements.
• The busbar room is in the upper back of the cabinet. In order to reduce the height of the cabinet, the busbars are arranged in a herringbone shape and supported by porcelain insulators with a bending strength of 7350N. The busbars are connected to the upper disconnector terminals, and the busbar rooms of adjacent cabinets can be isolated.
• The cable room is at the rear of the lower part of the cabinet. The cable room supports insulators and can be equipped with voltage monitoring devices. The cables are fixed on the brackets. When the main connection is a communication scheme, this room is the communication cable room. The relay room is at the front of the upper part of the cabinet. Various relays can be installed on the indoor mounting plate. There are terminal block brackets in the room. Secondary components such as indicating instruments and signal components can be installed on the door. Secondary small busbars can also be arranged on the top.
• The operating mechanism of the circuit breaker is installed on the left side of the front, and the operation and interlocking mechanism of the disconnector is above it. The switch cabinet is double-sided maintenance. The secondary components of the relay room, the operating mechanism, mechanical interlocking and transmission parts, and the circuit breaker are inspected from the front. The main busbar and cable terminal are repaired from the back, and a lighting lamp is installed in the circuit breaker room. A grounding copper busbar parallel to the cabinet width is provided below the front door, and its cross-section is: 3 x 30mm.

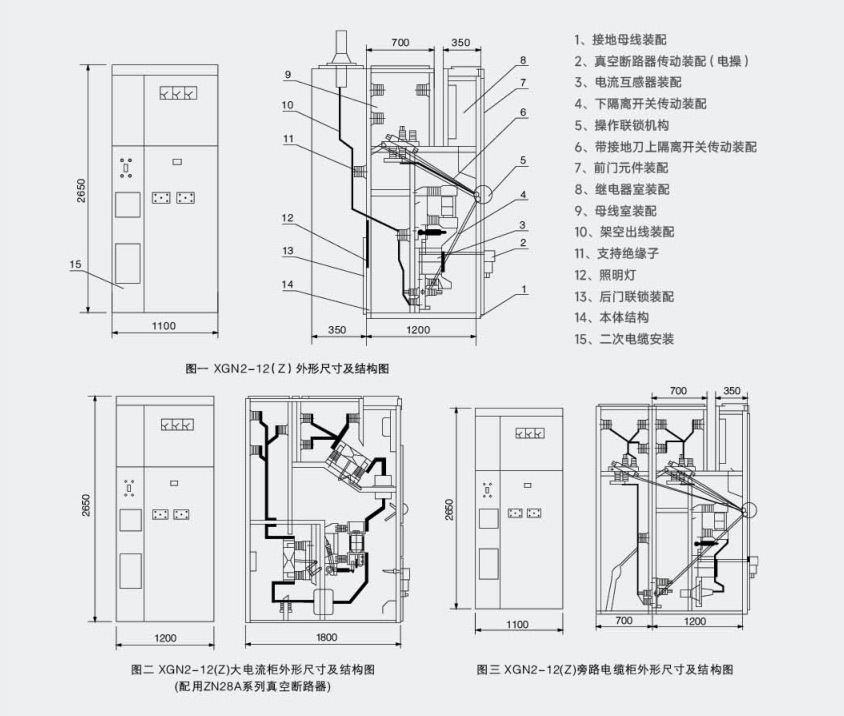

• Mechanical interlock: To prevent disconnection and closing of isolating switches under load, prevent accidental opening and closing of circuit breakers, prevent accidental entry into live compartments, prevent closing of grounding switches under power, and prevent accidental closing of circuit breakers in the closed position of grounding switches, the switch cabinet is equipped with corresponding reliable mechanical interlocks to ensure safe operation. Product dimensions and structure diagram (see Figure 1, Figure 2, Figure 3)
Appearance, installation dimensions and basic diagram (mm)
Ordering Instructions
The following information must be provided when ordering:
• Primary system diagram, floor plan;
• Auxiliary circuit electrical schematic, terminal arrangement diagram;
• Model, specification, quantity of switchgear electrical components:
• Specifications and materials of main busbar and branch busbar;
• Name and quantity of spare parts;
• Special requirements should be negotiated with our company.
