HXGN-12 AC metal ring network switchgear (vacuum switch)
High voltage switchgear series
- Details
-

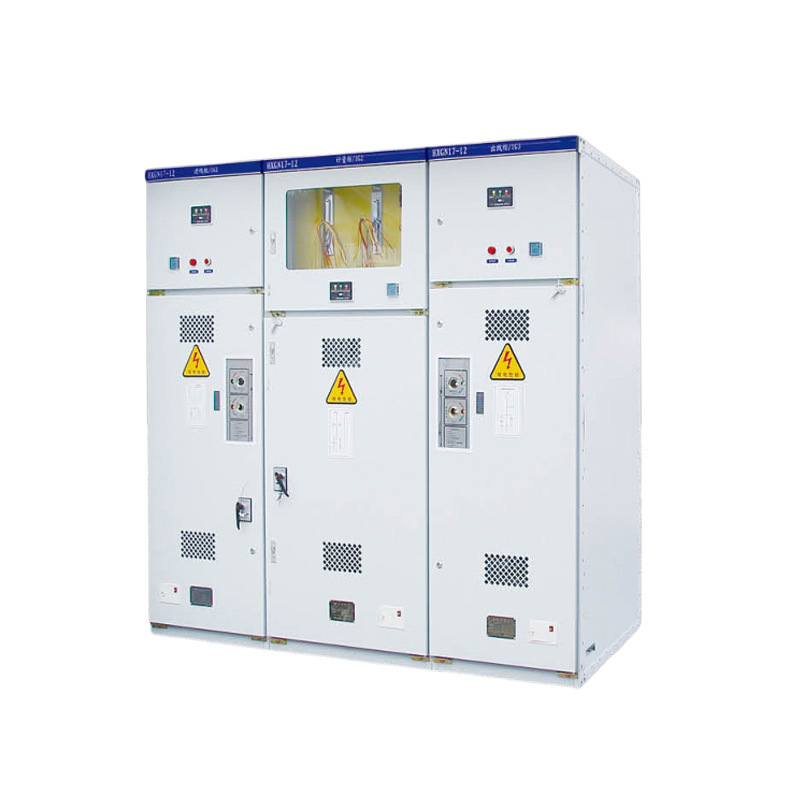

- Commodity name: HXGN-12 AC metal ring network switchgear (vacuum switch)
HXGN-12 AC metal ring network switchgear (vacuum switch) (referred to as ring network cabinet) is a new type of high-voltage switchgear produced for the needs of urban power grid transformation and construction. It is also used to break load current and short-circuit current and close short-circuit current in the power supply system.
Overview
HXGN-12 AC metal ring network switchgear (vacuum switch) (referred to as ring network cabinet) is a new type of high-voltage switchgear produced for the needs of urban power grid transformation and construction. It is also used to break load current and short-circuit current and close short-circuit current in the power supply system. This ring network cabinet is equipped with FZRN25 and FZRN21 vacuum load switches. The operating mechanism is a spring mechanism, which can be operated manually or electrically. The grounding switch and isolating knife are equipped with a manual operating mechanism. This ring network cabinet has strong completeness, small size, no combustion and explosion hazards, and also has reliable "five protection" functions.
This ring network cabinet complies with the relevant provisions of GB3906 "3-35kV AC metal-enclosed switchgear" and 1IEC60420 "High-voltage AC load switch fuse combination electrical appliances".Model meaning
H X G N 口 - 12 Ring network unit Box structure Indoor Design No. Rated voltage (KV)
Conditions of use
• Ambient air temperature: -15°C -+40°C;
• Altitude: 1000m and below:
• Humidity: daily average value not more than 95%, daily average value of water vapor pressure not more than 2.2KPA; monthly average value not more than 90%, monthly average value of water vapor pressure not more than 1.8KPA;
• Earthquake intensity: not more than 8 levels;
• Places without obvious pollution such as corrosive or flammable gases.
Note: When exceeding the above conditions of use, users can negotiate with our company.Main technical parameters

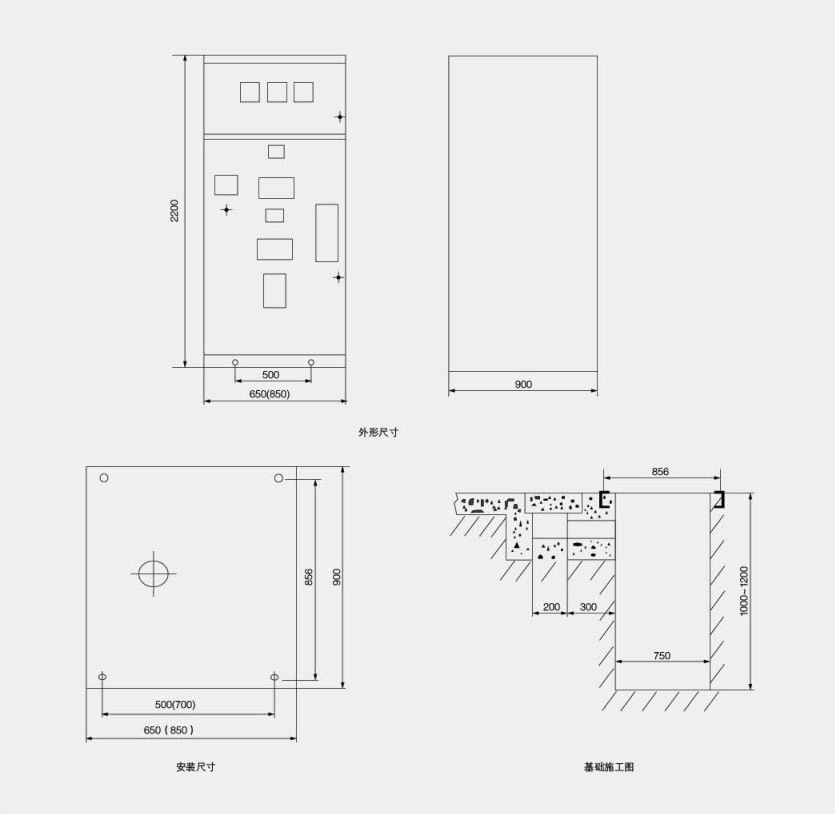

project unit FKN12-12 FKN25-12 Rated voltage kV 12 1min power frequency withstand voltage To ground and between phases 42; Isolation break 48 Lightning impulse voltage (peak value) To ground and between phases 75; Isolation break 85 Rated frequency Hz 50 Main bus rated current A 630 Load switch Rated current A 630 Electric life under rated current 次 Not less than 100 No-load transformer breaking capacity kvA 1250 Rated thermal stability current kA/s 20/4; Earthing switch 20/2 Rated dynamic stability current (peak value) kA 50 Rated short-circuit closing current (peak value) 50 Fuse rated current kV 100 Rated transfer current 1500 2000 Rated short-circuit breaking current kA 315 Matched fuse model S 口 LAJ-12(XRNT口-10) Mechanical life 次 2000 10000 Auxiliary circuit 1min power frequency withstand voltage kV 2 Electric operating mechanism working voltage V AC/DC220; 110 Protection level IP2X Dimensions (width x depth x height) mm 650(850)x900x2000(2200) Appearance and installation dimensions (mm)
Installation, storage and acceptance
Use and troubleshooting
• Packaging, storage and transportation
• The ring main unit is packed in a single wooden box when it leaves the factory. Overturning, inversion and severe vibration are not allowed during storage and transportation. Direct pushing and pulling on the ground is not allowed when moving; when there is no lifting device, a cylinder can be placed under the sleepers of the packaging box to slide it to the installation position.
• Prevent the cabinet from rain and moisture.
0 The ring main unit should be placed in a well-ventilated place that can prevent the invasion of various harmful gases. It is strictly forbidden to store it in the same warehouse with chemicals, acids and alkalis.
• Acceptance
• Check whether the packaging is damaged before unpacking, and pay attention to protecting the product when unpacking. Perform an appearance inspection of the cabinet; at the same time, check whether the components in the cabinet are damaged and whether the accessories are consistent with the packing list.
• Check whether the random documents are safe.
a. Product manual and manuals of components in the cabinet:
b. Factory test report;
C. Product certificate; .
d. Packing list;
e. Secondary wiring diagram.Installation and commissioning
• When installing, place the ring network cabinet on the installation foundation, arrange it neatly, debug it, and then fasten it with fasteners.
• When installing the main bus, open the bus room for installation, and the contact surface of the bus should be flat and free of dirt.
• The grounding of the ring network cabinet should be reliably grounded, and the grounding loop should be checked.
• During commissioning, debug according to the manual of the ring network cabinet and the manual of each component in the cabinet.
• After installation and commissioning, operate each switch element and anti-misoperation mechanism 5 times. If no abnormal phenomenon is found, it is considered that the switch mechanical operation is correct.Use and troubleshooting
• Inspection before power supply
• Before power supply, the ring network cabinet comprehensively checks the electrical performance, insulation level and wiring correctness of all components in the cabinet. It can be put into operation only when everything is normal.
• Normal operating state
• In normal operation, whether it is the incoming cabinet or the outgoing cabinet, the load switch should be in the closed position, the grounding knife should be in the open position, and the cabinet body should be closed and locked.
• Fault handling
• When the incoming cabinet is under fault maintenance, the incoming power supply should be cut off first, the load switch should be disconnected, and the live display on the cabinet should be checked at the same time. After confirmation, the grounding knife should be closed and the door should be opened for maintenance.
• When the outgoing cabinet is under fault maintenance, the load switch in the cabinet should be disconnected first, the grounding knife should be closed, and the front door should be opened for maintenance. At this time, the main busbar is in a live state.Maintenance and overhaul
• The ring network cabinet needs maintenance and overhaul in the following cases;
• Check the insulation level of the product after 5 years of operation;
• After the load switch is opened and closed 100 times, the main circuit resistance, load switch power, static contact and auxiliary contact should be checked.
• In general, the ring network cabinet should be maintained and overhauled after power failure.
