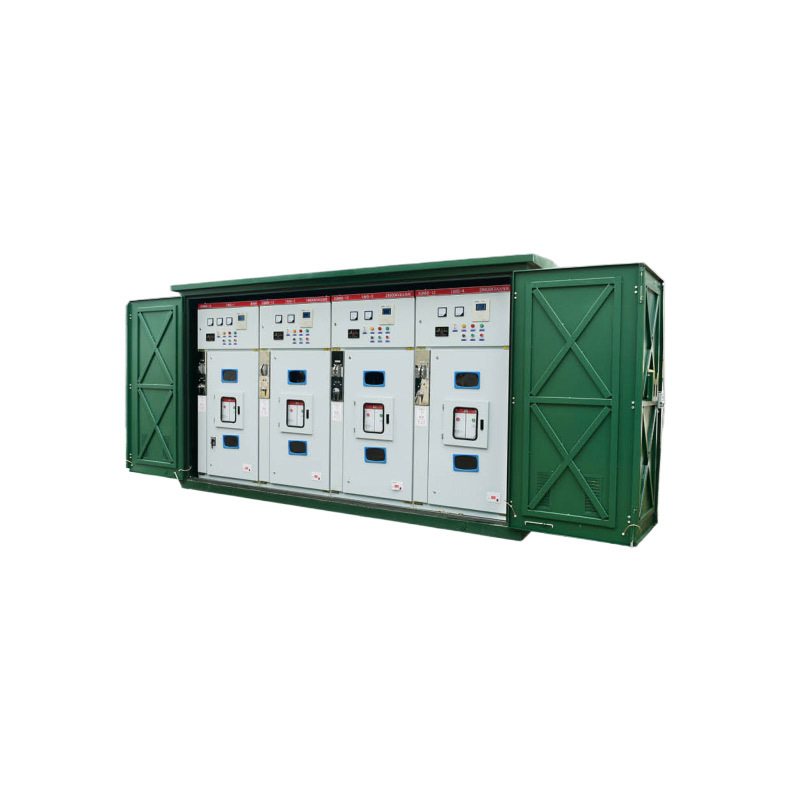

DFW-12 Cable Branch Box
Cable Branch Box Series
- Details
-
- Commodity name: DFW-12 Cable Branch Box
Use prefabricated live touchable silicone rubber cable head, fully sealed, fully insulated, maintenance-free, reliable guarantee of personal safety; compact structure, small and beautiful appearance, stainless steel double-layer box, service life can reach more than 20 years; without affecting the operation of the main grid.
Overview
Use prefabricated live touchable silicone rubber cable head, fully sealed, fully insulated, maintenance-free, reliable guarantee of personal safety; compact structure, small and beautiful appearance, stainless steel double-layer box, service life can reach more than 20 years; without affecting the operation of the main grid. Realize regional power outage maintenance and reduce the scope of power outage; can be equipped with one or more SF6 load switches. Flexible and diverse wiring methods, branch outgoing lines can reach up to eight circuits; optional lightning arresters, short-circuit fault indicators, current limiting fuses, etc., to meet various user requirements.
Model meaning
DFWK - 口 - 口 口 K 口 Cable junction box with switch Number of incoming circuits Number of outgoing circuits Number of branch circuits Branch circuit with switch Number of branch circuit switches
One switch can be omittedMain features
• Prefabricated live touchable silicone rubber cable head is used, which is fully sealed, fully insulated, maintenance-free, and reliably guarantees personal safety;
• Compact structure, small and beautiful appearance, stainless steel double-layer box, service life can reach more than 20 years;
• Under the premise of not affecting the operation of the main grid, regional power outage maintenance is realized to reduce the scope of power outage;
• Can be equipped with one or more SF6 load switches. The wiring method is flexible and diverse, and the branch line can reach up to 8 circuits;
• Optional lightning arresters, short-circuit fault indicators, current limiting fuses, etc., to meet various user requirements.Main technical parameters
project Unit Parameter Rated voltage kV 12 Rated current A 630 Power frequency withstand voltage (phase to ground) kV/min 42 Lightning impulse voltage kV 75 Rated breaking current A 630 Rated short-circuit breaking current (peak value) kA 50 Rated short-time withstand current kV/S 25/4 Rated peak withstand current kA 50 Rated breaking capacitance current A 45 Rated breaking inductance current A 16 Full load breaking times >100 Number of mechanical operations for opening and closing 2000 Typical wiring scheme
Model Line number description Primary wiring diagram Appearance and dimensions (mm)
(length × width × height)
DFWK-102K One into two branches with a switch
1180×1050×1600 DFWK-102K One inlet, three branches with one switch
1250×1050×1600 DFWK-104K One inlet and four branches with one switch
1250×1050×1600 DFWK-112K One in and one out two branches with one switch
1350×1050×1600 DFWK-113K One in, one out, three branches with one switch
1420×1050×1600 DFWK-114K One in, one out, four branches with one switch
1420×1050×1600 DFWK-102K2 One-into-two-branch with two switches
1350×1050×1600 DFWK-112K2 One in and one out two branches with two switches
1500×1050×1600 DFWK-103K3 One inlet, three branches, three switches
1850×1050×1600 DFWK-113K3 One in, one out, three branches with three switches
2000×1050×1600 Appearance and size (mm)
1. Incoming cable connector 2. Outgoing cable connector 3. Branch cable connector;
