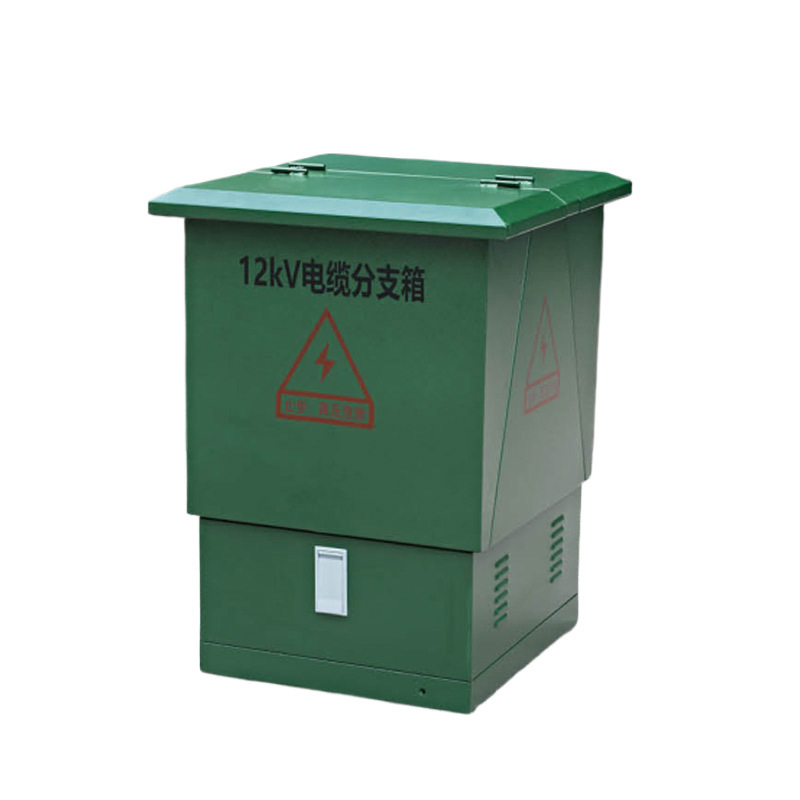

DFW-12 European style cable junction box
Cable Branch Box Series
- Details
-
- Commodity name: DFW-12 European style cable junction box
European-style cable distribution box is a cable-based engineering equipment widely used in power distribution network systems in recent years. Its main features are two-way opening and the use of wall bushings as connecting busbars.
Overview
European-style cable distribution box is a cable-based engineering equipment widely used in power distribution network systems in recent years. Its main features are two-way opening and the use of wall bushings as connecting busbars. It has small length, clear cable arrangement, and three-core Significant advantages include the need for cables to cross over large spans.
The cable connector used complies with DIN47636 standard. - Generally, bolt-fixed cable joints with a rated current of 630A are used.Model meaning
DFWK 口 - K 口 Cable junction box Voltage level Number of circuits
(Total number of incoming and outgoing lines in one phase)A means with lightning arrester
Default is withoutConditions of use
• Ambient temperature: Maximum temperature: +40°C, minimum temperature -30°C;
• Wind speed: equivalent to 34m/s (not more than 700Pa);
• Humidity: daily average relative humidity is not more than 95%, monthly average relative humidity is not more than 95%;
• Shockproof: horizontal acceleration is not more than 0.4m/s?, vertical acceleration is not more than 0.15m/s? Installation site inclination: not more than 3°;
• Installation environment: the surrounding air is not obviously polluted by corrosive, flammable gases, water vapor, etc., and there is no severe vibration at the installation site.Main technical parameters
project Unit Parameter Rated voltage kV 12 Rated current A 630 Dynamic stability current kA/0.3s 50 Thermal stability current kA/3s 20 1min power frequency withstand voltage kV 42 15min DC withstand voltage kV 52 Lightning impulse withstand voltage kV 105 Box protection level IP33
