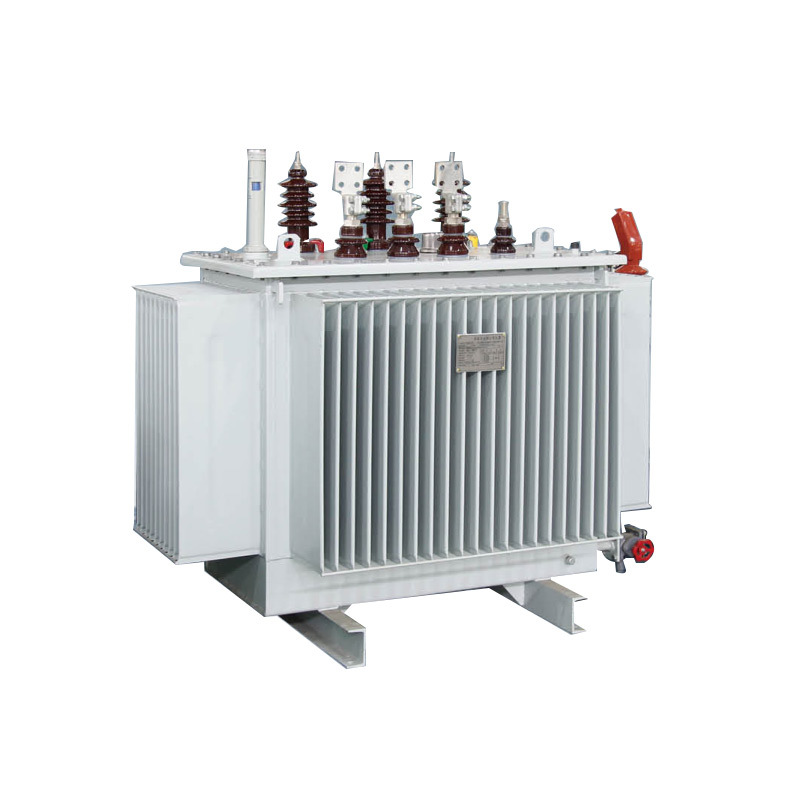

20KV S13-M oil immersed distribution transformer
Oil immersed transformer
- Details
-
- Commodity name: 20KV S13-M oil immersed distribution transformer
S13/S20/S22 series fully sealed oil-immersed transformers are suitable for power systems with AC 50Hz and rated working voltage of 20kV and below, and are used as distribution transformers in enterprises such as petroleum, metallurgy, chemical industry, textile, light industry and places with large dust.
Product Introduction
S13/S20/S22 series fully sealed oil-immersed transformers are suitable for power systems with AC 50Hz and rated working voltage of 20kV and below, and are used as distribution transformers in enterprises such as petroleum, metallurgy, chemical industry, textile, light industry and places with large dust.
Model Meaning
S 口 - M 口 / 口 Three-phase Design No. Fully sealed Rated capacity(kVA) High voltage side voltage level（kV） Product Features
◆ Core: The core is made of high-permeability grain-oriented cold-rolled silicon steel sheets. The core is a new type of core, a fully oblique joint stacked core, the core column is a multi-step circular cross-section, and the iron yoke and the core are of equal cross-section.
◆ Winding: The winding adopts corrugated oil channel, non-painting process, and tightening belt binding; the windings are all concentric line diagram: The high-voltage winding has a tap corresponding to the tap voltage requirements, which is led to the tap switch. The switch is installed on the box cover, and the tap voltage can be changed only after the power is cut off.
◆ Safety protection device: 30-2000kVA transformers are equipped with pressure relief valves: Gas relays with alarm and trip terminals can be installed according to user needs;
◆ Oil temperature measuring device: Transformers are equipped with glass thermometer tube holders, which are located at the top of the oil tank and extend into the oil 120+10mm; 1000-2000kVA transformers are equipped with outdoor signal thermometers;
◆ Transformer oil tank: The transformer oil tank is composed of corrugated walls, and the surface is dust-sprayed and the paint film is firm. The corrugated heat sink not only has a cooling function, but also has a "breathing" function. The elasticity of the corrugated heat sink can compensate for the change in transformer oil volume caused by temperature rise and fall. Therefore, the fully sealed transformer has no oil storage cabinet, which reduces the overall height of the transformer;
◆ The transformer adopts a vacuum oil filling process when encapsulating, which completely removes moisture in the transformer and the transformer oil does not come into contact with air. Effectively prevent oxygen and moisture from invading the transformer, which may lead to the deterioration of transformer insulation performance and aging of transformer oil. Therefore, oil sample tests are carried out from time to time;Technical parameters
S13-M type 20kV oil-immersed distribution transformerRated capacity（kVA） Voltage Organization（KV）） Link group label No-load loss（W） Load loss（75℃）W No-load current（%） Short circuit current（%） High pressure（KV） High voltage tapping range(%) Low pressure（KV） 50 20
22
24±5%
±2.5×2.5%
0.4 Dyn11
Yyn0
170 1270/1210 2.0 6.5 100 230 2120/2020 1.8 125 270 2500/2380 1.7 160 290 2970/2830 1.6 200 340 3500/3330 1.5 250 410 4160/3960 1.4 315 490 5010/4770 1.4 400 580 6050/5760 1.3 500 690 7280/6930 1.2 630 830 8280 1.1 800 980 9900 1.0 1000 1150 12150 1.0 1250 1410 14670 0.9 1600 1700 17550 0.8 Note: 1. The load loss above the slash in the table is applicable to the Dyn11 connection group, and the load loss value below the slash is applicable to the Yyn0 connection group.
2. The performance parameters of products with other capacities are determined by negotiation between the user and the manufacturer.
