Rectifier Transformer
- Details
-

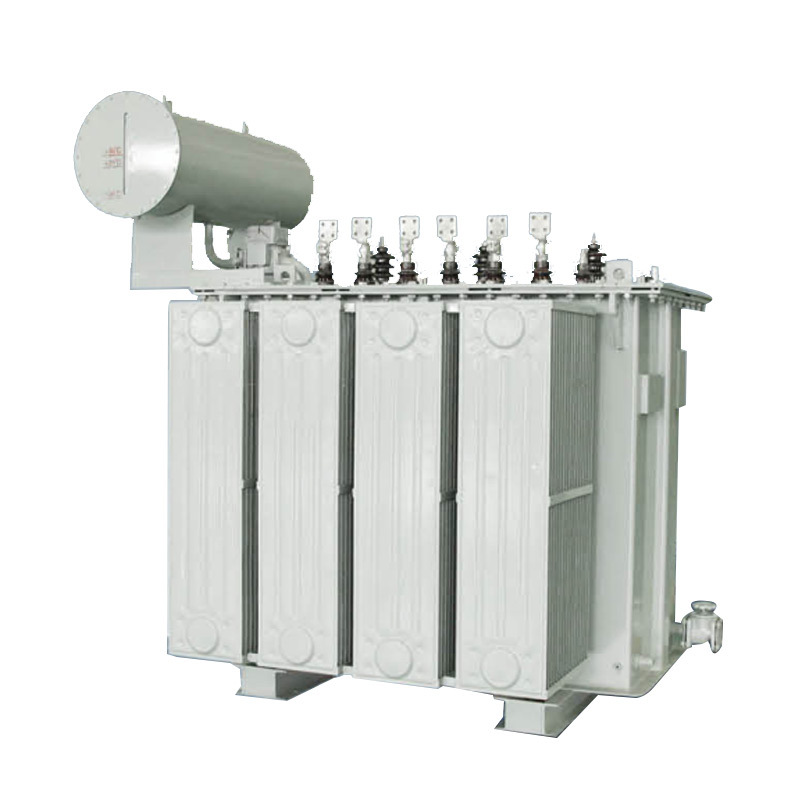

- Commodity name: Rectifier transformer
Rectifier transformer is the power transformer of the rectifier device, and its function is to provide AC power to the rectifier. The rectifier converts AC power into DC power, thereby providing DC power supply. It is mainly used in metallurgy, chemical industry, locomotive traction and transmission industries.
Product Introduction
Rectifier transformer is the power transformer of the rectifier device, and its function is to provide AC power to the rectifier. The rectifier converts AC power into DC power, thereby providing DC power supply. It is mainly used in metallurgy, chemical industry, locomotive traction and transmission industries. The product is energy-saving, low-loss, low-noise, strong in impact and short-circuit resistance, strong in overload capacity, compact structure, small size, and reliable power supply.
Product Features
The iron core is made of high-quality cold-rolled silicon steel sheets. In larger transformers, the iron core sheet adopts a 45° full-bevel joint, which reduces no-load loss, no-load current and noise.
The winding electromagnetic wire adopts high-conductivity oxygen-free copper wire, the grid side coil mostly adopts a continuous structure, and the voltage regulating coil mostly adopts a layered structure. The valve side coil is generally a double-pancake structure. Because the electronic computer is used to calculate the electric field and coil, the wire diagram structure has excellent electrical characteristics. The oil tank adopts a plate radiator or a corrugated oil tank and a strong oil air-cooled or strong oil water-cooled radiator. For larger rectifier transformers and oil tanks, a folded plate structure is adopted, which not only beautifies the appearance but also improves the mechanical strength of the oil tank.Main technical parameters
Product Model Grid voltage(KV) DC parameters and characteristics Product Weight（KG） Overall dimensions (mm)
Length × width × height/hanging heightRectification circuit No-load voltage Working current Voltage regulation level Body Total weight ZHSFPTB-28000/35 35 Three-phase with saturated reactance 500 31500 54 32200 65000 6020*3850*4200 ZHSFPT-50000/35 35 Three-phase bridge 530 35000 54 29210 73420 7600*3850*4750 ZBSSPZ-27000/35 35 Three-phase bridge 480-216 37500-83330 35 31000 59230 4500*3700*4800/8500 ZBSSPZ-21600/35 35 Three-phase bridge 480-216 30000-66660 35 23260 46900 4400*3300*4600/8000 ZHSTK-16000/35 35 Double reverse star with balanced reactance 305-165 31500 12-27 15500 36000 3700*3600*4250/7500 ZHSTK-15000/35 35 Double reverse star with balanced reactance 360-190 27000 12-27 22350 42500 4100*2500*4500/8000 ZBSSPZ-11500/35 35 Three-phase bridge 660-330 11540-23080 27 16600 36800 4650*2400* 4750/8000 ZHSTK-10000/35 35 Double reverse star with balanced reactance 90-99 75000 12-27 15200 32500 5500* 2900* 4600/7500 ZHSZK-9500/35 35 Double reverse star with balanced reactance 80-56 80000 9-6 16500 42000 47004450*4600/8000 ZBSSPZ-9000/35 35 Three-phase bridge 660-330 9090-218180 27 14000 32210 4500*2350*4600/8000 ZHSZK-8000/10 10 Double reverse star with balanced reactance 180-90 25000 6-27 10870 25230 4540*3800*3750/6000 ZBSSPZ-7500/35 35 Three-phase bridge 526.5-205 9045-3230 27 12900 28110 4400* 2200* 4600/8000 ZHSTK-7200/35 35 Double reverse star with balanced reactance 400-250 11000 6-27 11500 24500 4800*3000*3600/6000 ZHSTK-6500/6.3 6.3 Double reverse star with balanced reactance 154-111 40000 12-27 14800 32400 4300* 3300*4800/8000 ZHSZK-6300/10 10 Double reverse star with balanced reactance 301-207 16000 6-19 5580 15400 3900* 3800*3800/6000 ZBSSPZ-6000/35 35 Three-phase bridge 440-220 8660-17320 27 10950 23890 3960*2000*4200/7000 ZHSTK-5800/35 35 Double reverse star with balanced reactance 400-250 11000 6-27 8500 21000 4300*2900*3600/6000 ZHSTK-5600/35 35 Double reverse star with balanced reactance 224-124 14000 12-27 14340 35000 5000*2500*3200/6000 ZHSTKB-5000/10 10 Double anti-star reactor 195-102 15000 12-27 9610 2600 3300*2600*3500/6000 ZBSSPZ-4500/35 35 Three-cabinet bridge type 330-179 9090-16000 27 8070 20150 4050*2000* 4200/7000 ZHSZK-4000/3S 35 Double reverse star with balanced reactance 205-148 15000 6-27 7200 17900 3720*2150*3850/6500 ZHSZK-3500/10 10 Double reverse star with balanced reactance 305-180 4600 9-6 4460 11860 3700*3280*3900/6000 ZHSZK-3150/10 10 Double reverse star with balanced reactance 12000 12000 7-6 4900 13900 4200* 3100*3800/5500 ZHSZK- 2500/10 10 Double reverse star with balanced reactance 15000 15000 6-27 5430 14200 4300* 2500*2800/4500 ZHSZK-2300/10 10 Double reverse star with balanced reactance 173-90 8000 6-14 4400 10800 4100*2350* 2900/4500 ZHSK-1000/35 35 Double reverse star with balanced reactance 5200 5200 5-6 2580 6630 2550*1340*3500/5500
