XJM/J/S/P Electricity Meter Box
Low voltage switchgear series
- Details
-

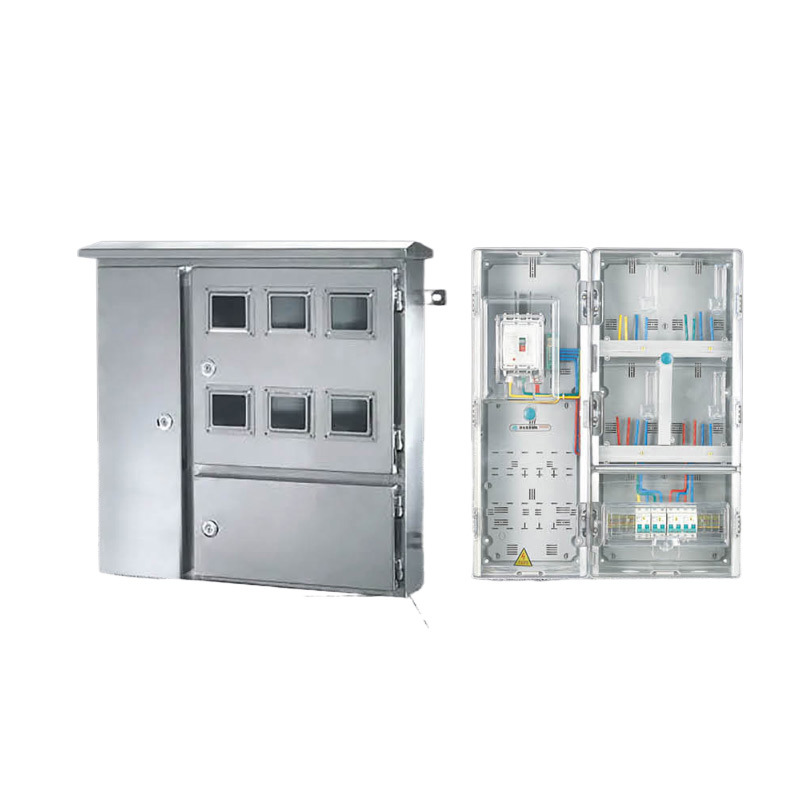

- Commodity name: XJM/J/S/P Electricity Meter Box
XJM 1J/S/P meter box (hereinafter referred to as meter box) is suitable for use as a metering device in AC 50HZ, voltage 220V, TN-C system (three-phase five-wire). The meter box complies with GB7251.3 "Low-voltage complete switchgear and control equipment" standard.
Overview
XJM 1J/S/P meter box (hereinafter referred to as meter box) is suitable for use as a metering device in AC 50HZ, voltage 220V, TN-C system (three-phase five-wire). The meter box complies with GB7251.3 "Low-voltage complete switchgear and control equipment" standard.
Model meaning
XJM - 口 Product Code Number of circuits Conditions of use
• The ambient air temperature is not higher than 40°C and not lower than -5°C. The average temperature within 24 hours shall not be higher than +35°C.
• For indoor use, the altitude of the use location shall be ≤2000m.
• The relative humidity of the ambient air shall not exceed 50% at the highest temperature of +40°C; a higher relative humidity is allowed at lower temperatures, 90% at +20°C, and the influence of condensation that may occur accidentally due to temperature changes should be considered.
• The device should be installed in a place without severe vibration and impact, and where the electrical components are not subject to unnecessary corrosion.
• If the user has special requirements, they can negotiate with the manufacturer to resolve them.Main technical parameters
Project Unit Parameter Rated insulation voltage V 500 Rated working voltage main circuit V 200 Rated frequency Hz 50 Rated current A 40 Isolating switch before meter A 45、63、100 Circuit breaker after meter A 20、25、32、40、63、80 Rated short-time withstand current kA 4.5、6 Installation dimensions
Name Overall dimensions (length x width x height) Remark One meter box 380×580×185 Two meter boxes 480×580×185 Three meter boxes 660×580×185 Four meter boxes 660×820×185
